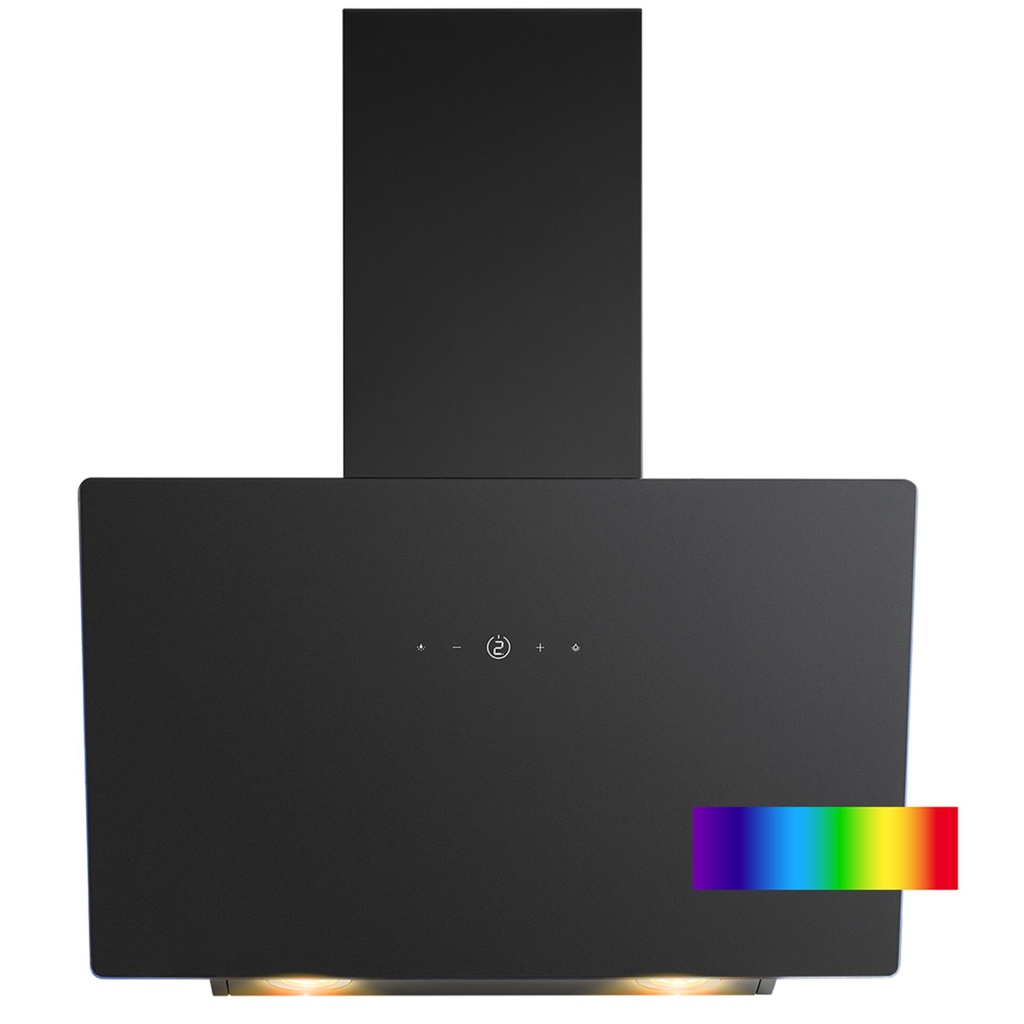

Bomann DU 7611 G Diagonal Chimney Hood
Type
Type: Wall-Mounted Hood
Extraction System: Ducted or Ductless (optional)

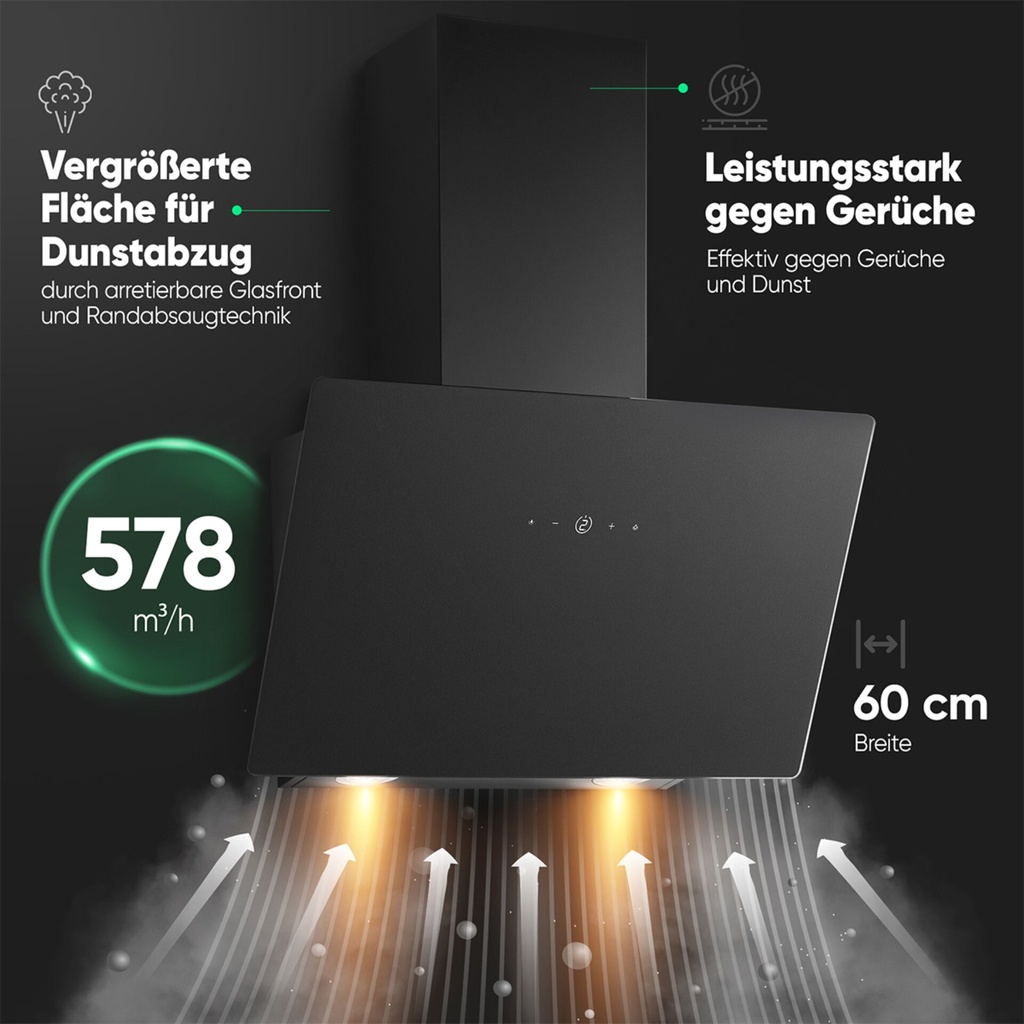

Air Extraction Rate (m³/h): 578
Air Circulation: 3
Connection Power (W): 119
Equipment
Energy Efficiency Class: A+
Energy Efficiency Class: A+
Colour Value: u-EnergyLabel-efficiencyClass--3
Filter: Aluminium Grease Filter
Number of filters: 1
Illumination
Type of Lamp: LED
Total Power Illuminant (W): 2x 1,5
Number of Illuminants: 2
Referring to Energy Label (2010/30/EU)
Eprel-ID: 2093177
Trade mark: Bomann
Model: DU 7611 G
Annual energy consumption (kWh/year): 20
Fluid dynamic efficiency (airflow efficiency): 29,4
Fluid dynamic efficiency from A (highest efficiency) to G (lowest efficiency): A
Lighting efficiency in lux: 35,9
Lighting efficiency from A (highest efficiency) to G (lowest efficiency): A
Grease filtering efficiency (%): 74,3
Grease filtering efficiency from A (highest efficiency) to G (lowest efficiency): D
Air flow (m³/h) at minimum speed in normal use: 207
Air flow (m³/h) at maximum speed in normal use: 578
Air flow (m³/h) at intensive or boost setting: -
Airborne accoustical A-weighted sound power emissions at minimum speed in normal use (dB): 47

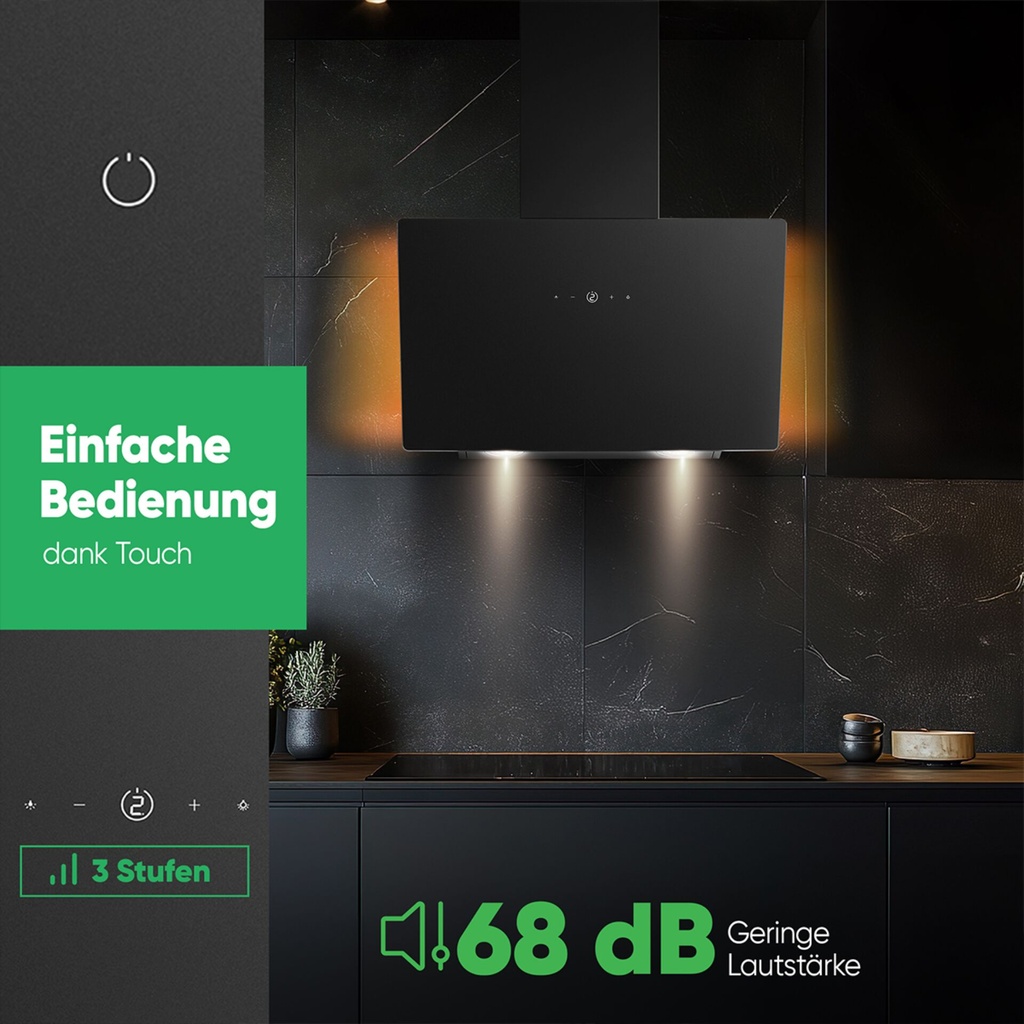

Airborne accoustical A-weighted sound power emissions at maximum speed in normal use (dB): 68
Airborne accoustical A-weighted sound power emissions at intensive or boost setting (dB): -
Power Consumption in Off-Mode (W), EN 62301: 0,48
General
Colour: Black

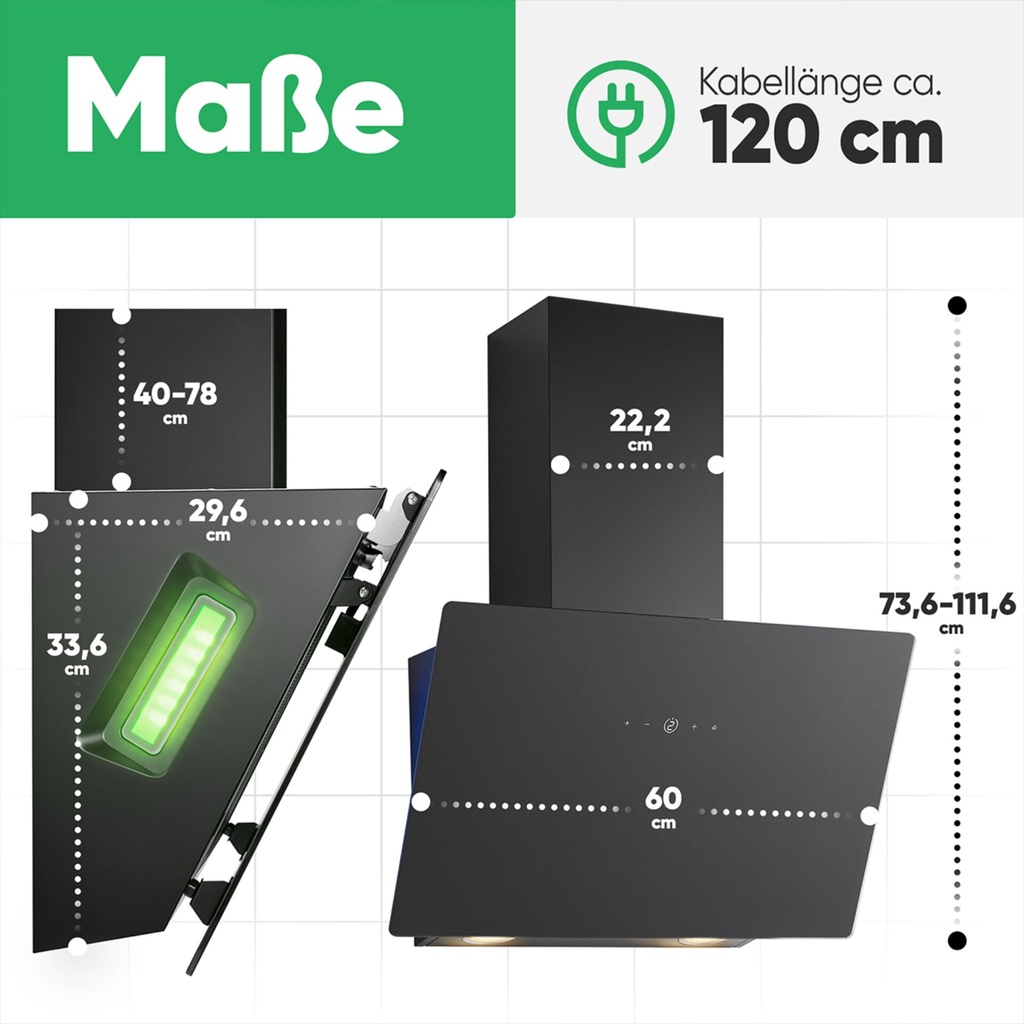

Width (mm): 600
Height (mm): 1116
Depth (mm): 296
